SOFTLINE - 68, 78, 88
Durability and beauty of nature
68 Uw = 1,08* / 78 Uw = 0,9** / 88 Uw = 0,8***
THERMAL TRANSMITTANCE
68/78/88 mm
INSTALLATION DEPTH
2
Gaskets
THERMAL TRANSMITTANCE
68 Uw = 1,08* / 78 Uw = 0,9** / 88 Uw = 0,8***
INSTALLATION DEPTH
68/78/88 mm
Gaskets
2

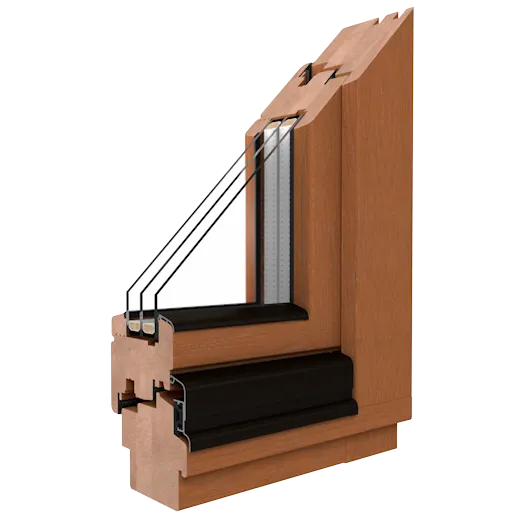

SOFTLINE - 68, 78, 88
Our wooden windows mean the highest quality, environmentally friendly solutions and classic elegance. The remarkable window durability is ensured by an aluminium bead that protects wood from UV and water. The beautiful form of the rounded profile of the window with a streamlined shape and a smooth and shiny surface. The Softline series is available in pine and meranti.
AS STANDARD:
- MACO MULTI-MATIC KS fittings with 2 anti-theft strikers with Silber-Look anticorrosion coating for long-lasting protection and smooth operation of the fitting
- sash lifter (lifting mishandling device - depending on window height)
- microventilation in tilt and turn windows
- hinge covers in 3 colours: white, silver, brown
- aluminium handle
- 2-glazed (1-chamber) units infilled with argon gas with Ug = 1.1 W/(m²K)
- glass-pane spacer made of galvanised steel
- drip cap facilitating water drainage
- 2 EPDM gaskets
Wooden window colour range
Choose your colour from a dozen or so colours of opaque paints (covering the entire wood structure) and stain paints for the wooden part of the window.
Dark Oak
Meranti
Meranti
Dark Oak
Pine
Pine
Teak
Pine
Pine
Teak
Meranthi
Meranthi
Nut
Pine
Pine
White Softline
Maghoni
Pine
Pine
Maghoni
Meranthi
Meranthi
Bright oak
Pine
Pine
Bright oak
Meranthi
Meranthi
Palisander
Pine
Pine
Palisander
Meranthi
Meranthi
Nut
Meranthi
Meranthi
Choose colour::
Dark Oak
Meranti
Glass
DRUTEX, with over 30 years of experience in the production of composite glass, offers a very wide range of glass with which you can fit your windows and doors. They meet strict requirements for energy efficiency and sound insulation. The offer also includes laminated glass (safe and burglar-proof), sun protected glass, glass with enhanced sound insulation, tempered, ornamental and sandblasted glass.
Additional options
Internal muntin bars
Sizes: 8/18/26/45 mm
Sizes: 8/18/26/45 mm
Vienna muntin bars
Size: 26 mm
Size: 26 mm
Internal muntin bars
Sizes: 8/18/26/45 mm
Sizes: 8/18/26/45 mm
Vienna muntin bars
Size: 26 mm
Size: 26 mm
Reliable fittings
MACO fittings are the perfect solution in terms of security and functionality of windows and doors made of PVC, aluminium and wood.
See all
Comfort Fittings
TBT Fittings
Reed switch
Hinge covers
Fanlights closer
Comfort Fittings
TBT Fittings
Reed switch
Hinge covers
Fanlights closer
Sandblasted glass
Express your unique style on your windows and doors. We offer the possibility of creating any sandblasting pattern in three shades of gray.
See all
Example 1
Example 2
Example 3
Example 4
Example 5
Example 6
Example 7
Example 8
Example 9
Example 10
Example 11
Example 12
Example 13
Example 14
Example 15
Example 16
Example 17
Example 18
Example 19
Example 20
Example 21
Example 22
Example 23
Example 24
Example 1
Example 2
Example 3
Example 4
Example 5
Example 6
Example 7
Example 8
Example 9
Example 10
Example 11
Example 12
Example 13
Example 14
Example 15
Example 16
Example 17
Example 18
Example 19
Example 20
Example 21
Example 22
Example 23
Example 24
Spacers
Galvanised steel frame is the standard. Hoever It is possible to choose the Swisspacer Ultimate warm frame.
See all
Swisspacer Ultimate
Gray RAL 9023
Gray RAL 9023
Swisspacer Ultimate
Light brown RAL 8003
Light brown RAL 8003
Swisspacer Ultimate
White RAL 9016
White RAL 9016
Galvanised steel
(standard)
(standard)
Swisspacer Ultimate
Dark brown RAL 8014
Dark brown RAL 8014
Swisspacer Ultimate
Black RAL 9005
Black RAL 9005
Swisspacer Ultimate
Light gray RAL 7035
Light gray RAL 7035
Swisspacer Ultimate
Gray RAL 9023
Gray RAL 9023
Swisspacer Ultimate
Light brown RAL 8003
Light brown RAL 8003
Swisspacer Ultimate
White RAL 9016
White RAL 9016
Galvanised steel
(standard)
(standard)
Swisspacer Ultimate
Dark brown RAL 8014
Dark brown RAL 8014
Swisspacer Ultimate
Black RAL 9005
Black RAL 9005
Swisspacer Ultimate
Light gray RAL 7035
Light gray RAL 7035
Ventilation
Thanks to our ventilators, your windows and doors will take care of proper ventilation and fresh air flow.
See all
Aereco AMO
6-30 m3/h*
6-30 m3/h*
Ventair Simpress
6.2-22 m3/h*
6.2-22 m3/h*
Aereco EXR
7-28 m3/h*
7-28 m3/h*
Aereco EMM
5-29 m3/h*
5-29 m3/h*
RENSON THM 90 46,5 m3/h*
Aereco AMO
6-30 m3/h*
6-30 m3/h*
Ventair Simpress
6.2-22 m3/h*
6.2-22 m3/h*
Aereco EXR
7-28 m3/h*
7-28 m3/h*
Aereco EMM
5-29 m3/h*
5-29 m3/h*
RENSON THM 90 46,5 m3/h*
Handles
Our PVC, aluminium and wood handles are distinguished by their high aesthetics, functionality and durability. Thanks to various colour options, they can be perfectly matched to the colour of the windows, doors, or the colour scheme of the building.
Window handle (white)
Window handle (brown)
Window handle (black)
Window handle - DUBLIN (white RAL9016)
Window handle - DUBLIN (brown RAL8019)
Window handle - DUBLIN (RAL7016)
Window handle - DUBLIN (RAL9005)
Window handle - DUBLIN (silver)
Window handle with a key - DUBLIN (RAL7016)
Window handle with a key - DUBLIN (RAL9005)
Window handle with a key - DUBLIN(silver)
Hoppe Secustic window handle (white)
Hoppe Secustic window handle F1
Hoppe Secustic window handle F2
Hoppe Secustic window handle F4
Hoppe Secustic window handle F9
Window handle IE (white)
Window handle IE (brown)
Window handle IE (olive)
Window handle IE (silver)
Window handle MA 1010 (stainless steel)
Window handle (olive)
Window handle (silver)
Hoppe Secustic window handle (brown)
Window handle with a key (white)
Window handle with a key (brown)
Window handle with a key - DUBLIN (white RAL9016)
Window handle with a key - DUBLIN (brown RAL8019)
Window handle with a key IE (white)
Window handle with a key IE (brown)
Window handle with a key IE (olive)
Window handle with a key IE (silver)
Window handle with a key (olive)
Window handle with a key - (silver)
Window handle with a button (white)
Window handle with a button (brown)
Window handle with a button - DUBLIN (white - RAL9016)
Window handle with a button - DUBLIN (brown RAL8019)
Window handle with a button - DUBLIN (RAL7016)
Window handle with a button - DUBLIN (RAL9005)
Window handle with a button - DUBLIN (silver)
Window handle with a button (olive)
Window handle with a button (silver)
Window handle (white)
Window handle (brown)
Window handle (black)
Window handle - DUBLIN (white RAL9016)
Window handle - DUBLIN (brown RAL8019)
Window handle - DUBLIN (RAL7016)
Window handle - DUBLIN (RAL9005)
Window handle - DUBLIN (silver)
Window handle with a key - DUBLIN (RAL7016)
Window handle with a key - DUBLIN (RAL9005)
Window handle with a key - DUBLIN(silver)
Hoppe Secustic window handle (white)
Hoppe Secustic window handle F1
Hoppe Secustic window handle F2
Hoppe Secustic window handle F4
Hoppe Secustic window handle F9
Window handle IE (white)
Window handle IE (brown)
Window handle IE (olive)
Window handle IE (silver)
Window handle MA 1010 (stainless steel)
Window handle (olive)
Window handle (silver)
Hoppe Secustic window handle (brown)
Window handle with a key (white)
Window handle with a key (brown)
Window handle with a key - DUBLIN (white RAL9016)
Window handle with a key - DUBLIN (brown RAL8019)
Window handle with a key IE (white)
Window handle with a key IE (brown)
Window handle with a key IE (olive)
Window handle with a key IE (silver)
Window handle with a key (olive)
Window handle with a key - (silver)
Window handle with a button (white)
Window handle with a button (brown)
Window handle with a button - DUBLIN (white - RAL9016)
Window handle with a button - DUBLIN (brown RAL8019)
Window handle with a button - DUBLIN (RAL7016)
Window handle with a button - DUBLIN (RAL9005)
Window handle with a button - DUBLIN (silver)
Window handle with a button (olive)
Window handle with a button (silver)
Compare products

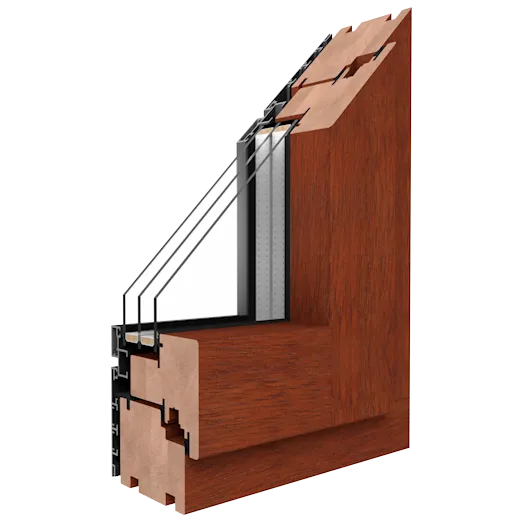

| Technical data |  SOFTLINE - 68, 78, 88 |  DUOLINE - 68, 78, 88 |
|---|---|---|
| Number of chambers | Solid profile | Solid profile |
| Installation depth | Softline 68 - 68 mm | Duoline 68 - 68 mm + spacer bar 14 mm |
| Number of gaskets | 2 | 3 |
| Thermal transmittance | Softline 68 Uw = 1,08 W/(m2K)* *For a window measuring 1,230x1,480 mm - calculation method, meranti wood, with the argon gas-filled glass package Ug = 0.8 W/(m2K), with the Swisspacer plastic spacer bar. | Duoline 68 from Uw = 0,90 W/(m2K)* *For a window measuring 1,230x1,480 mm - calculation method, meranti wood, with the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar. |
| Glass packages | Softline 68 to 32 mm | Duoline 68 to 46 mm |
