IGLO EDGE
Technology That Impresses
IGLO EDGE
Our new, most technologically advanced window is distinguished by an excellent thermal insulation parameter of Uw = 0,66 W/(m2K)* and a modern, angular profile shape. The extremely good thermal insulation parameters are due, among other things, to the 7-chamber profile design and 3 EPDM gaskets, including the central gasket. Standard Equipment:
- double-chamber glazing package Ug = 0,5 W/(m2K)
- Swisspacer Ultimate plastic warm frame
- V-perfect weld
- 4 anti-theft strikers according to the size of the sash and the hardware system
- microventilation
- DUBLIN aluminium window handle
- handle misplacement locking mechanism
- perimeter, glazing and central gaskets in black or grey
- filling of the lower hardware groove
- sill trim
- wide selection of pvc veneer colours
- 3 profile colours to choose from: white, brown or anthracite
Downloads
PVC window colour range
703905-097
702305-167
915205-168
1137905-167
887505-167
2178007-167
61
49240015-148
612505-167
715505-167
3162002-167
701605-167
701605-097
308105-167
703905-167
2115008-167
3152009-167
2178001-167
2097013-167
02.20.71.000001-504700-047
3118076-167
725105-167
701205-167
F456-3081
9.1293001-195
(7015) 02.11.71.000040-097
(DB703) 1.0065002-097
02.20.01.000002-504700-047
F470-3001
Jet black
02.12.17.000001-195
Glass
Additional options
Sizes: 27/45/65 mm
Sizes: 8/18/26/45 mm
Sizes: 27/45/65 mm
Sizes: 8/18/26/45 mm
Gray RAL 9023
Light brown RAL 8003
White RAL 9016
(standard)
Dark brown RAL 8014
Black RAL 9005
Light gray RAL 7035
Gray RAL 9023
Light brown RAL 8003
White RAL 9016
(standard)
Dark brown RAL 8014
Black RAL 9005
Light gray RAL 7035
6-30 m3/h*
14,9-22,1 m3/h*
6.2-22 m3/h*
7-28 m3/h*
5-29 m3/h*
5.6 m3/h*
6.5 m3/h*
30 m3/h*
6-30 m3/h*
14,9-22,1 m3/h*
6.2-22 m3/h*
7-28 m3/h*
5-29 m3/h*
5.6 m3/h*
6.5 m3/h*
30 m3/h*
Handles
Compare products

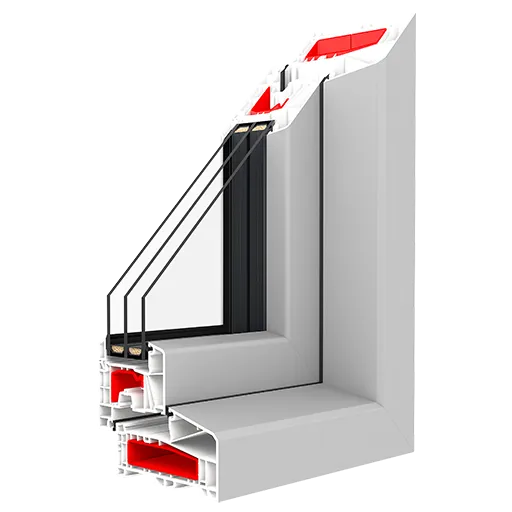

| Technical data |  IGLO EDGE |  IDEAL 7000 NL |  IDEAL NEO AD |  IDEAL NEO MD |  IDEAL NEO MD-FS |  IDEAL NEO MD MONOBLOCK |  IDEAL NEO MD RENOVATION |  IGLO ENERGY ALUCOVER |  IGLO Energy |  IGLO Energy Classic |  IGLO 5 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of chambers | 7 | 5 | 5/6 | 6 | 6 | 6 | 5/6 | 7 | 7 | 7 | 5 |
| Installation depth | 82 mm | 120 mm | 76 mm | 76 mm | 76 mm | 76 mm / 122 mm / 142 mm / 162 mm | 76 mm | 82 mm | 82 mm | 70 mm | |
| Number of gaskets | 3 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 2 |
| Thermal transmittance | Uw = 0,66 W/(m2K)* | Uw = 0,82 W/(m2K)* *For a window measuring 1,230x1,480 mm, with the Swisspacer Ultimate plastic spacer bar. | Uw = 0,79 W/(m2K)* *For a window measuring 1,230x1,480 mm, with the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,76 W/(m2K)* *For a window measuring 1,230x1,480 mm, with the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,73 W/(m2K)* *For a window measuring 1,230x1,480 mm, with the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,76 W/(m2K)* *For a window measuring 1,230x1,480 mm, with the Swisspacer Ultimate plastic spacer bar. | Uw = 0,76 W/(m2K)* *For a window measuring 1,230x1,480 mm, with the Swisspacer Ultimate plastic spacer bar. | Uw = 0,76 W/(m2K)* *For a window measuring 1,230x1,480 mm – calculation method = 0.76 W/(m2K) with the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,71 W/(m2K)* *For a window measuring 1,230x1,480 mm, Uw = 0.71 W/(m2K) with steel reinforcement and the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,73 W/(m2K)* | Uw = 0,89 W/(m2K)* *For a window measuring 1,230x1,480 mm, with steel reinforcement and the argon gas-filled glass package Ug = 0.6 W/(m2K), with the Swisspacer plastic spacer bar. |
| Glass packages | 48-58 mm | 24-54 mm | 24-54 mm | 24-54 mm | 36-68 mm | 24-52 mm | 24-52 mm | 24-48 mm | 24-48 mm | 24-52 mm | 24-40 mm |
| Sound insulation | 36-47 dB | dB = 36 | dB = 36 | dB = 36 | dB = 36 | dB = 36 | dB = 36 | - | dB = 37-46 | dB = 36-42 | dB = 36-44 |
