MB-77HS HI MONORAIL

Create your space

EPDM gaskets

Uw = 0,75 W/(m²K)*

THERMAL TRANSMITTANCE

NUMBER OF CHAMBERS

174 mm

INSTALLATION DEPTH

EPDM gaskets

THERMAL TRANSMITTANCE

Uw = 0,75 W/(m²K)*

NUMBER OF CHAMBERS

INSTALLATION DEPTH

174 mm

MB-77HS HI MONORAIL

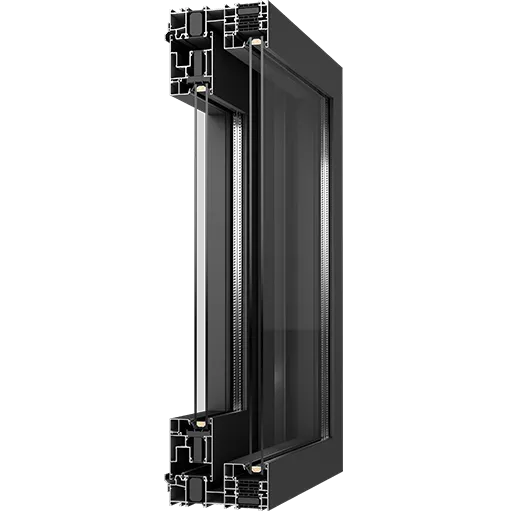

The MB-77HS HI MONORAIL "Lift & Slide" door product is an ideal solution for connecting interior space rooms or conservatories with the outside balcony, terrace or garden area. Standard:

G-U lift and slide fittings with 3 locking bolts
micro-ventilation striker
aluminium handle on the inside, recessed grip on the outside
3-glazed (2-chamber) units infilled with argon gas, with Ug = 0.5 W/(m²K)
glass-pane spacer made of galvanised steel
2 EPDM gaskets in black (external and internal)
system carts with a load capacity of 300 kg
48 mm high threshold
RAL matt color: white (9016), anthracite (7016)

Aluminium terrace system colour range

Choose the colour that suits you from over 200 RAL colours. We offer smooth matt and metallic paints that have a texture or have the so-called special effects (mainly wood-like)

We make every effort to ensure that the images shown reproduce the actual colours of the products as accurately as possible. Please note, however, that due to individual monitor and graphics card settings, the displayed colours may differ from the originals.

Choose colour:

Orange brown

RAL-8023

Glass

With over 40 years’ experience in the manufacture of insulating glass units, DRUTEX offers a very wide range of glazing options for your windows and doors. They meet strict requirements for energy efficiency and sound insulation. The offer also includes laminated glass (safe and burglar-proof), sun protected glass, glass with enhanced sound insulation, tempered, ornamental and sandblasted glass.

Systemy tarasowe z aluminium

Stwórz drzwi tarasowe, które spełnią Twoje oczekiwania.

Mounting accessories

Here you will find the products necessary for proper installation of joinery.

See all

Muntin bars

Muntin bars will add classic and timeless style to your windows and doors.

See all

Sandblasted glass

Express your unique style on your windows and doors. We offer the possibility of creating any sandblasting pattern in three shades of gray.

See all

Spacers

Galvanised steel frame is the standard. Hoever It is possible to choose the Swisspacer Ultimate warm frame.

See all

Compare products

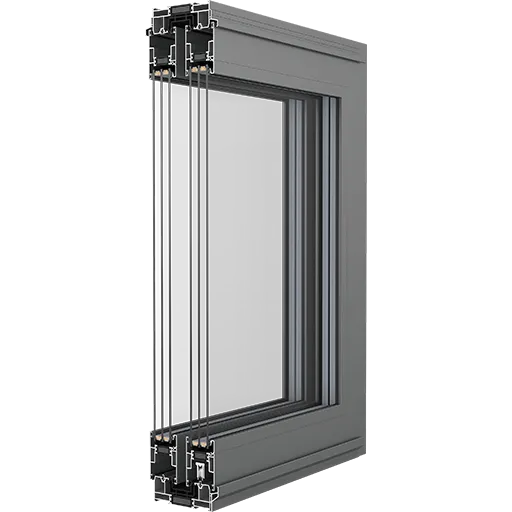

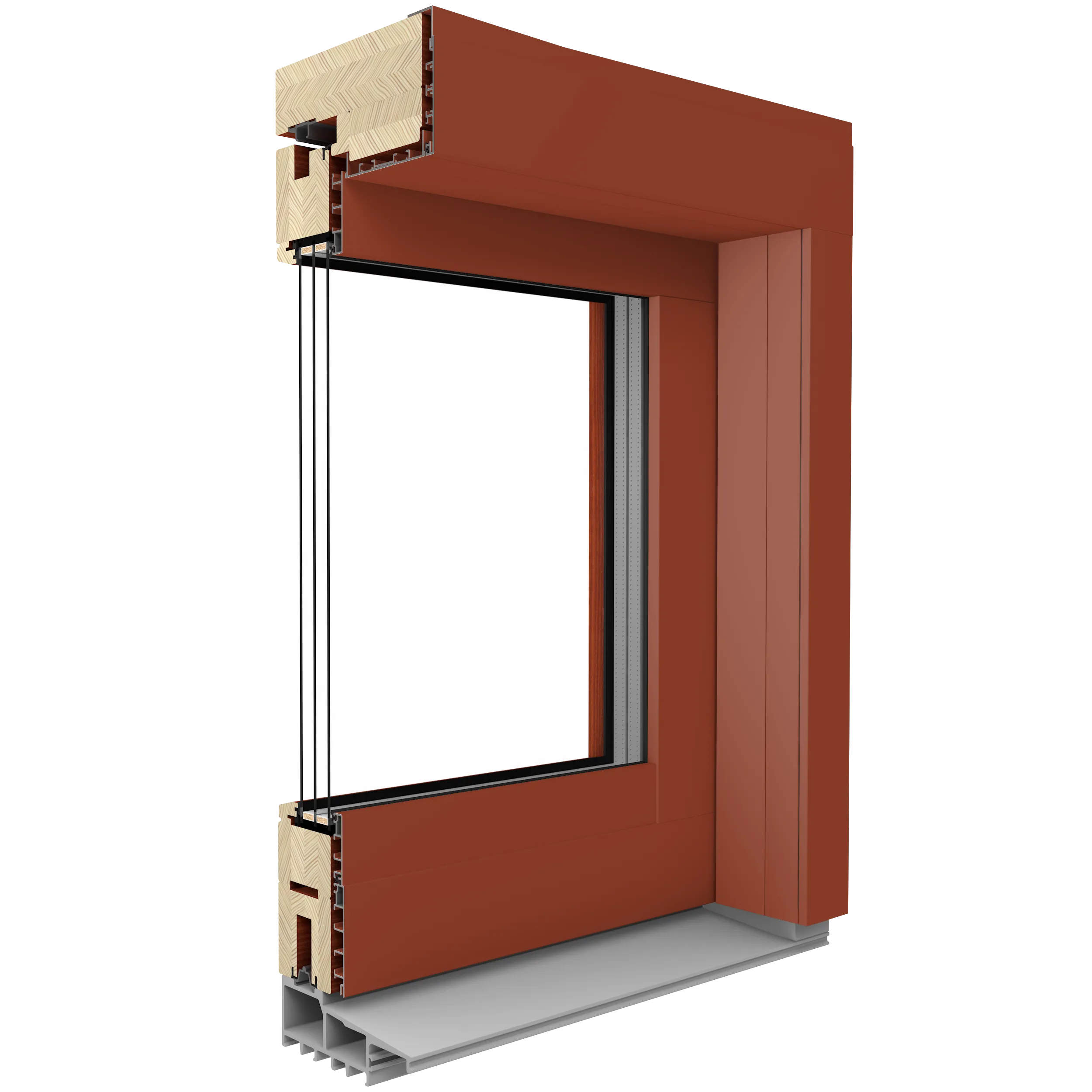

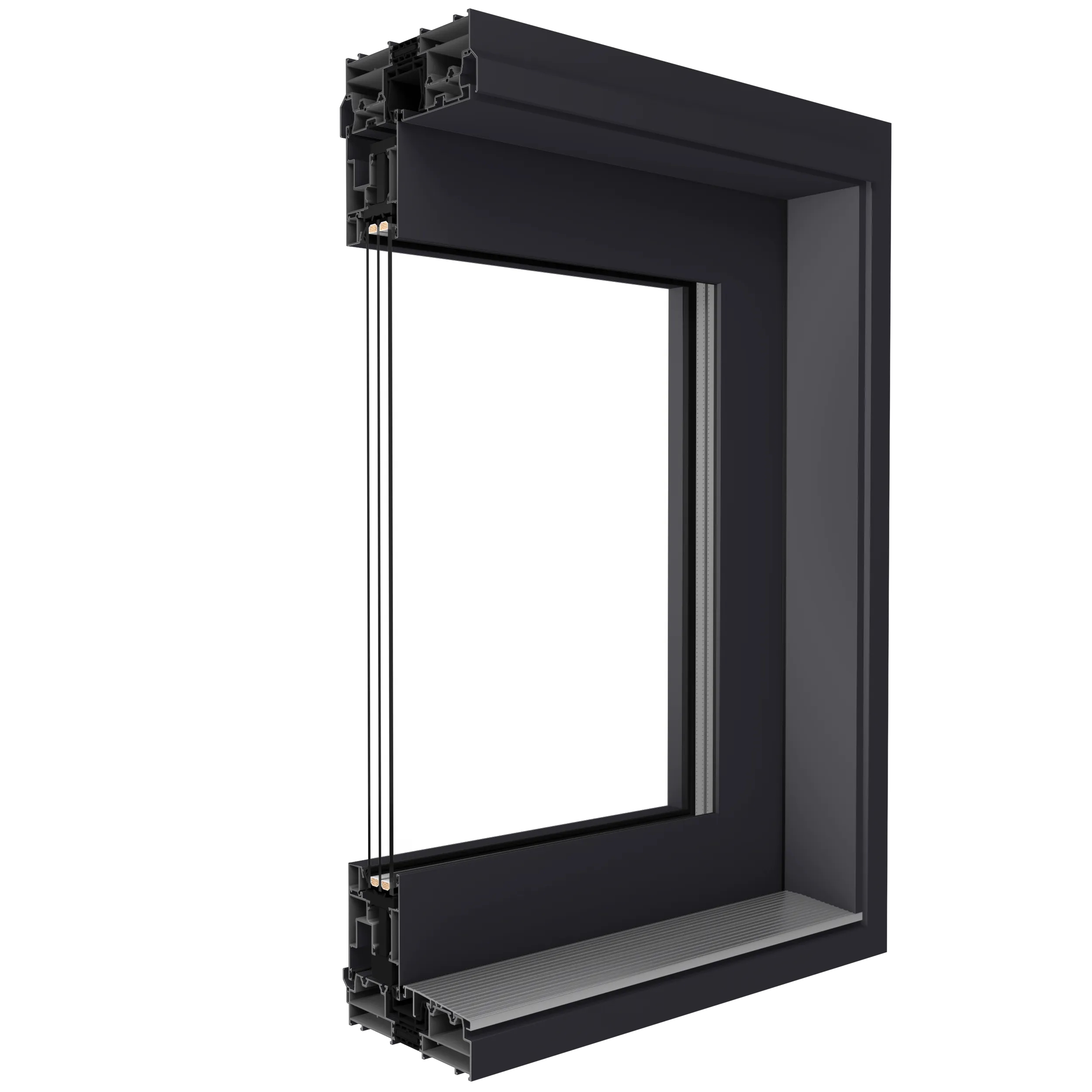

Technical data	MB-77HS HI MONORAIL	MB-59HS HI	IGLO-HS	IGLO-HS ALUCOVER	MB-77HS HI	DUOLINE HS
Number of chambers	3	3	7	7	3	Solid profile
Installation depth	174 mm	174 mm	194 mm	206 mm	174 mm	194/214/234 mm
Number of gaskets	2	2	2	2	2	3
Thermal transmittance	Uw = 0,75 W/(m²K)* *for a structure measuring 4,000 x 2,200 with T4 glass + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4	Uw = 1,8 W/(m²K)* *for a structure measuring 4,000 x 2,200 with T4 glass + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4	Uw = 0,71 W/(m²K)* *for a structure measuring 2,700 x 2,300 with T4 glass + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4	Uw = 0,73 W/(m²K)* *for a structure measuring 4000x2500mm with T4 glass + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4	Uw = 1,0 W/(m²K)* *for a structure measuring 4,000 x 2,200 with T4 glass + 18 Swisspacer Ultimate + FL4 + 18 Swisspacer Ultimate + T4	PINE 68 Uw=1,0 ¹ / PINE 78 Uw=0,85 ² / PINE 88 Uw=0,79 ³ MERANTI 68 Uw=0,96 ¹ / MERANTI 78 Uw=0,80 ² / MERANTI 88 Uw=0,75 ³ 1 for terrace system 3600x2450 mm with glass Ug=0,8 W/(m2K) + plastic spacer Swisspacer Ultimate - calculation method 2 for terrace system 3600x2450 mm with glass Ug=0,6 W/(m2K) + plastic spacer Swisspacer Ultimate - calculation method *3 for terrace system 3600x2260 mm with glass Ug=0,5 W/(m2K) + plastic spacer Swisspacer Ultimate - calculation method
Glass packages	9-61 mm	9-61 mm	36-52 mm	36-52 mm	9-61 mm	DL68: 24-44mm DL78: 24-50mm DL88: 24-58mm
