MB-86N SI
Excellent parameters and durability of aluminium
3
EPDM gaskets
Uw = 0,76 W/(m2K)*
THERMAL TRANSMITTANCE
3
NUMBER OF CHAMBERS
77 mm
INSTALLATION DEPTH
EPDM gaskets
3
THERMAL TRANSMITTANCE
Uw = 0,76 W/(m2K)*
NUMBER OF CHAMBERS
3
INSTALLATION DEPTH
77 mm

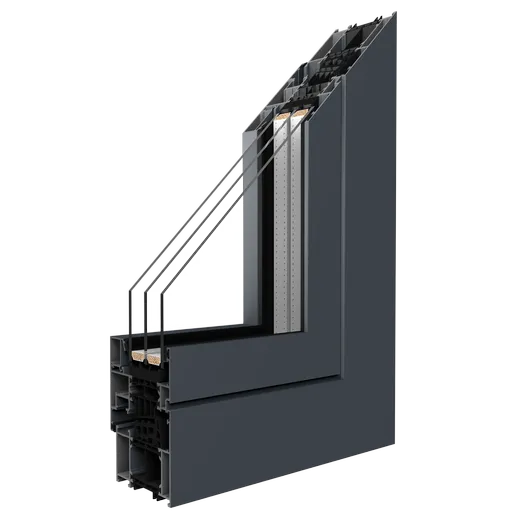

MB-86N SI
MB-86N SI aluminium windows stand out for their excellent thermal insulation parameters and modern design. Over 200 colours to choose from and numerous additional options allow you to fully customise your windows.
This window system can also be fitted with Smart Home solutions.
AS STANDARD:
- MACO MULTI-MATIC KS fittings with 2 anti-theft strikers with Silber-Look anticorrosion coating for long-lasting protection and smooth operation of the fitting
- sash lifter (lifting mishandling device - depending on window height)
- microventilation in tilt and turn windows
- hinge covers in 3 colours: white, silver, brown
- aluminium handle
- 2-glazed (1-chamber) units infilled with argon gas with Ug = 1.1 W/(m²K)
- glass-pane spacer made of galvanised steel
- 1 EPDM gaskets + 1 central gasket made of foamed EPDM, gaskets available in black
- RAL matt color: white (9016), anthracite (7016)
Aluminium window colour range
Choose the colour that suits you Over 200 RAL colours of windows. We offer smooth matt and metallic paints that have a texture or have the so-called special effects (mainly wood-like).
Choose colour::
Orange brown
RAL-8023
Glass
DRUTEX, with over 30 years of experience in the production of composite glass, offers a very wide range of glass with which you can fit your windows and doors. They meet strict requirements for energy efficiency and sound insulation. The offer also includes laminated glass (safe and burglar-proof), sun protected glass, glass with enhanced sound insulation, tempered, ornamental and sandblasted glass.
Aluminium windows - additional options
Create the windows that will meet your expectations.
MB-GLASS BARRIER
MB-GLASS BARRIER-based external balustrades are used on upper floors with opening French doors or floor to ceiling full high windows as a safety element to prevent from falling.
See all
MB-GLASS BARRIER
External glass balustrade
External glass balustrade
MB-GLASS BARRIER
External glass balustrade
External glass balustrade
Internal muntin bars
Sizes: 8/18/26/45 mm
Sizes: 8/18/26/45 mm
Internal muntin bars
Sizes: 8/18/26/45 mm
Sizes: 8/18/26/45 mm
Reliable fittings
MACO fittings are the perfect solution in terms of security and functionality of windows and doors made of PVC, aluminium and wood.
See all
Comfort Fittings
TBT Fittings
Reed switch
Hinge covers
Fanlights closer
Comfort Fittings
TBT Fittings
Reed switch
Hinge covers
Fanlights closer
Sandblasted glass
Express your unique style on your windows and doors. We offer the possibility of creating any sandblasting pattern in three shades of gray.
See all
Example 1
Example 2
Example 3
Example 4
Example 5
Example 6
Example 7
Example 8
Example 9
Example 10
Example 11
Example 12
Example 13
Example 14
Example 15
Example 16
Example 17
Example 18
Example 19
Example 20
Example 21
Example 22
Example 23
Example 24
Example 1
Example 2
Example 3
Example 4
Example 5
Example 6
Example 7
Example 8
Example 9
Example 10
Example 11
Example 12
Example 13
Example 14
Example 15
Example 16
Example 17
Example 18
Example 19
Example 20
Example 21
Example 22
Example 23
Example 24
Spacers
Galvanised steel frame is the standard. Hoever It is possible to choose the Swisspacer Ultimate warm frame.
See all
Swisspacer Ultimate
Gray RAL 9023
Gray RAL 9023
Swisspacer Ultimate
Light brown RAL 8003
Light brown RAL 8003
Swisspacer Ultimate
White RAL 9016
White RAL 9016
Galvanised steel
(standard)
(standard)
Swisspacer Ultimate
Dark brown RAL 8014
Dark brown RAL 8014
Swisspacer Ultimate
Black RAL 9005
Black RAL 9005
Swisspacer Ultimate
Light gray RAL 7035
Light gray RAL 7035
Swisspacer Ultimate
Gray RAL 9023
Gray RAL 9023
Swisspacer Ultimate
Light brown RAL 8003
Light brown RAL 8003
Swisspacer Ultimate
White RAL 9016
White RAL 9016
Galvanised steel
(standard)
(standard)
Swisspacer Ultimate
Dark brown RAL 8014
Dark brown RAL 8014
Swisspacer Ultimate
Black RAL 9005
Black RAL 9005
Swisspacer Ultimate
Light gray RAL 7035
Light gray RAL 7035
Ventilation
Thanks to our ventilators, your windows and doors will take care of proper ventilation and fresh air flow.
See all
RENSON THM 90 46,5 m3/h*
RENSON THM 90 46,5 m3/h*
Handles
Our PVC, aluminium and wood handles are distinguished by their high aesthetics, functionality and durability. Thanks to various colour options, they can be perfectly matched to the colour of the windows, doors, or the colour scheme of the building.
Window handle - DUBLIN (white RAL9016)
Window handle - DUBLIN (brown RAL8019)
Window handle - DUBLIN (RAL7016)
Window handle - DUBLIN (RAL9005)
Window handle - DUBLIN (silver)
Window handle with a key - DUBLIN (RAL7016)
Window handle with a key - DUBLIN (RAL9005)
Window handle with a key - DUBLIN(silver)
Window handle with a key (white)
Window handle with a key - DUBLIN (white RAL9016)
Window handle with a key - DUBLIN (brown RAL8019)
Window handle with a key IE (brown)
Window handle with a button - DUBLIN (white - RAL9016)
Window handle with a button - DUBLIN (brown RAL8019)
Window handle with a button - DUBLIN (RAL7016)
Window handle with a button - DUBLIN (RAL9005)
Window handle with a button - DUBLIN (silver)
Window handle - DUBLIN (white RAL9016)
Window handle - DUBLIN (brown RAL8019)
Window handle - DUBLIN (RAL7016)
Window handle - DUBLIN (RAL9005)
Window handle - DUBLIN (silver)
Window handle with a key - DUBLIN (RAL7016)
Window handle with a key - DUBLIN (RAL9005)
Window handle with a key - DUBLIN(silver)
Window handle with a key (white)
Window handle with a key - DUBLIN (white RAL9016)
Window handle with a key - DUBLIN (brown RAL8019)
Window handle with a key IE (brown)
Window handle with a button - DUBLIN (white - RAL9016)
Window handle with a button - DUBLIN (brown RAL8019)
Window handle with a button - DUBLIN (RAL7016)
Window handle with a button - DUBLIN (RAL9005)
Window handle with a button - DUBLIN (silver)
Compare products

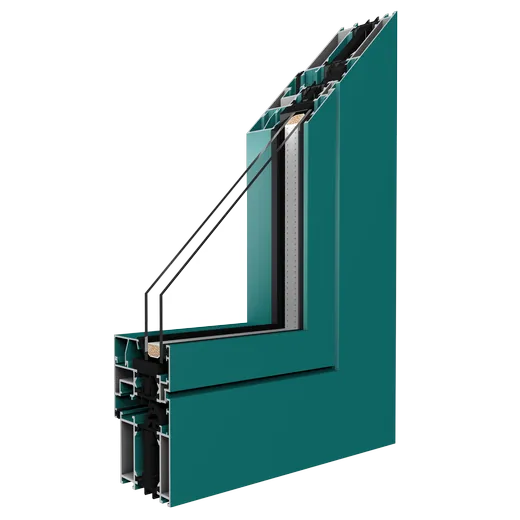

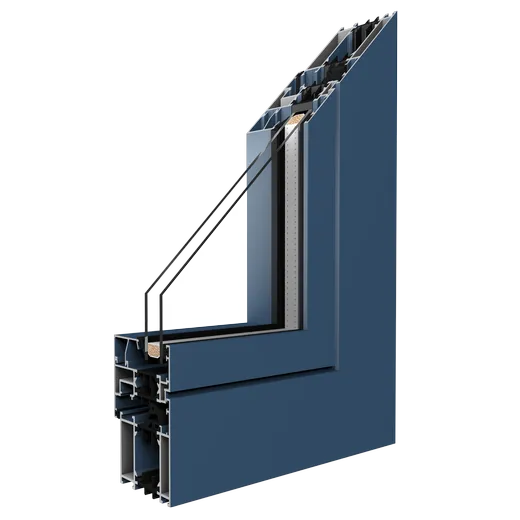

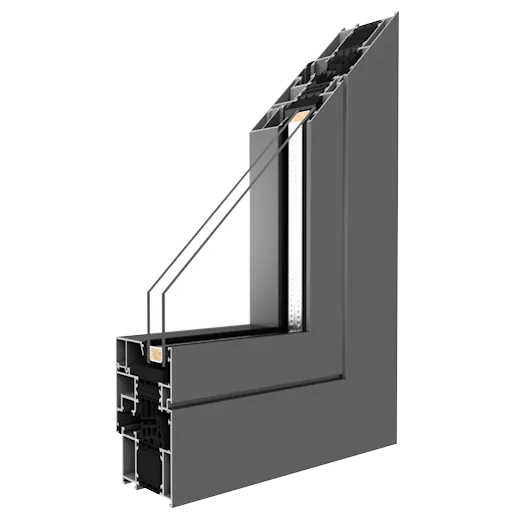

| Technical data |  MB-86N SI |  MB-79N SI |  MB-45 |  MB-70HI |  MB-70 |
|---|---|---|---|---|---|
| Number of chambers | 3 | 2 | 3 | 3 | |
| Installation depth | 77 mm | 70 mm | 45 mm | 70 mm | 70 mm |
| Number of gaskets | 3 | 2 | 2 | 3 | 3 |
| Thermal transmittance | Uw = 0,76 W/(m2K)* *For a window measuring 1,230x1,480 mm – calculation method = 0,76 W/(m2K) with the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 0,81 W/(m2K)* *For a window measuring 1,230x1,480 mm – calculation method = 0.81 W/(m2K) with the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | — | Uw = 0,96 W/(m2K)* *For a window measuring 1,230x1,480 mm – calculation method = 0.96 W/(m2K) with the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. | Uw = 1,06 W/(m2K)* *For a window measuring 1,230x1,480 mm – calculation method = 1,06 W/(m2K) with the argon gas-filled glass package Ug = 0.5 W/(m2K), with the Swisspacer plastic spacer bar. |
| Glass packages | 17,5-70 mm | 10,5-63 mm | 1,5-37 mm | 23,5-62 mm | 23,5-62 mm |
