IGLO-HS ALUCOVER

Redefining Design Excellence

2
EPDM gaskets
Uw = 0,73 W/(m2K)*
THERMAL TRANSMITTANCE
7
NUMBER OF CHAMBERS
206 mm
INSTALLATION DEPTH
36-52 mm
Glass packages
EPDM gaskets
2
THERMAL TRANSMITTANCE
Uw = 0,73 W/(m2K)*
NUMBER OF CHAMBERS
7
INSTALLATION DEPTH
206 mm
Glass packages
36-52 mm

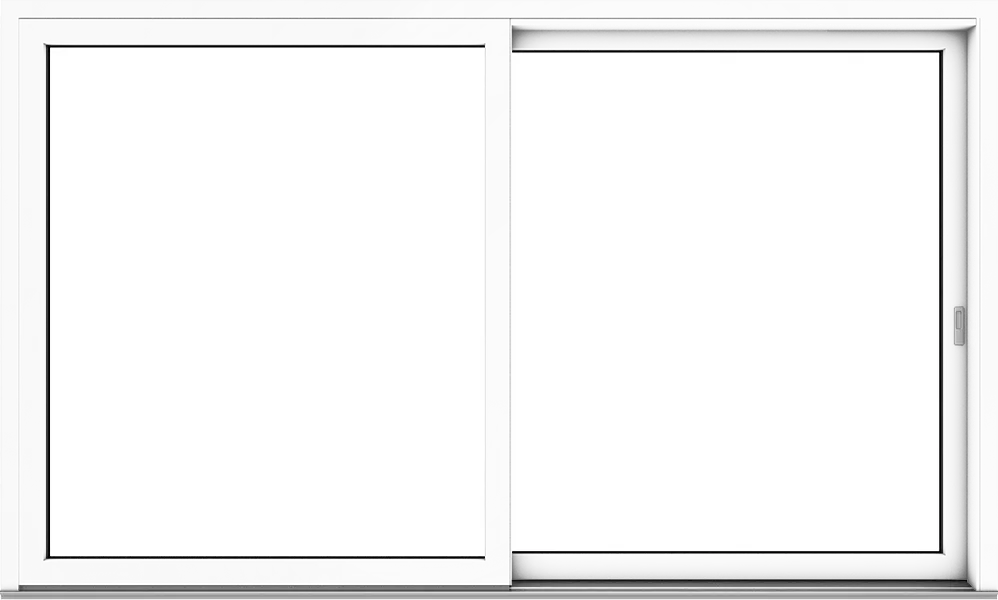

IGLO-HS ALUCOVER

This terrace system was created by combining the excellent thermal insulation performance of PVC with the best features of aluminum.

Embrace boundless creativity with an extensive palette of colors, empowering you to fashion a unique and personalized style for every interior or building facade.

AS STANDARD:
  • Swisspacer Ultimate edge
  • rectangular glazing bead
  • aluminum handle
  • V-Perfect weld
  • RAL matt varnishb

SEE THE IGLO ENERGY ALUCOVER WINDOW

PVC-aluminium terrace system colour range

Choose the window colour that suits you. Over 200 RAL colours for the aluminium part of the window and a dozen or so colours of opaque paints for the PVC par
Indoor view
outdoor view
Palisander
Pine
Dark Green
612505-167
Dark Red
308105-167
Chocolate Brown
887505-167
moss green
61
Natural Oak
3118076-167
Oregon
2115008-167
White FX
915205-168
Grey
715505-167
Anthracite
701605-167
Winchester
49240015-148
Quartz Grey
703905-167
Basalt Grey
701205-167
Quartz Grey Smooth
703905-097
Basalt Grey Smooth
701205-097
Anthracite Smooth
701605-097
Concrete Grey
702305-167
Sheffield Oak Light
F456-3081
Slate Grey Smooth
(7015) 02.11.71.000040-097
Nut
Meranthi
Dark Oak
2052089-167
Creamy
1137905-167
Douglas
3152009-167
Golden Oak
2178001-167
Mahogany
2097013-167
Macore
3162002-167
Crown Platinum
9.1293001-195
Light Grey
725105-167
Iron Glimmer Slate
(DB703) 1.0065002-097
Black Ulti-Matt
02.20.01.000002-504700-047
Anthracite Ulti-Matt
02.20.71.000001-504700-047
Turner Oak
F470-3001
Middle Brown
809905-167
Pyrite
02.12.17.000001-195
Jet black
Jet black
Silver
01
Choose the colour for the PVC part:
Palisander
Pine
Choose the colour for the aluminium part:
Orange brown
RAL-8023

Glass

DRUTEX, with over 30 years of experience in the production of composite glass, offers a very wide range of glass with which you can fit your windows and doors. They meet strict requirements for energy efficiency and sound insulation. The offer also includes laminated glass (safe and burglar-proof), sun protected glass, glass with enhanced sound insulation, tempered, ornamental and sandblasted glass.

Systemy tarasowe PVC

Stwórz system tarasowy, który spełni Twoje oczekiwania.
Muntin bars
Muntin bars will add classic and timeless style to your windows and doors.
See all
Glue-on muntin bars
Glue-on muntin bars
Sizes: 27/45/65 mm
Internal muntin bars
Internal muntin bars
Sizes: 8/18/26/45 mm
Sandblasted glass
Express your unique style on your windows and doors. We offer the possibility of creating any sandblasting pattern in three shades of gray.
See all
Spacers
Galvanised steel frame is the standard. Hoever It is possible to choose the Swisspacer Ultimate warm frame.
See all

Compare products

Technical dataIGLO-HS ALUCOVERIGLO-HS ALUCOVERIGLO-HSIGLO-HSMB-77HS HIMB-77HS HIDUOLINE HSDUOLINE HSSOFTLINE HSSOFTLINE HS
Number of chambers

7

7

3

Solid profile

Solid profile

Installation depth

206 mm

194 mm

174 mm

194/214/234 mm

164/184/204 mm

Number of gaskets

2

2

2

3

2

Thermal transmittance

 Uw = 0,73 W/(m2K)*

*for a structure measuring 4000x2500mm with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4

 Uw = 0,71 W/(m2K)*

*for a structure measuring 2,700 x 2,300 with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4

Uw = 1,0 W/(m2K)*

*for a structure measuring 4,000 x 2,200 with T4 glass + 18 SwissSpacer Ultimate + FL4 + 18 SwissSpacer Ultimate + T4

PINE 68 Uw=1,0 *1  /   PINE 78 Uw=0,85 *2  /  PINE 88 Uw=0,79 *3
MERANTI 68 Uw=0,96 *1  /  MERANTI 78 Uw=0,80 *2  /  MERANTI 88 Uw=0,75 *3

*1 for terrace system 3600x2450 mm with glass Ug=0,8 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*2 for terrace system 3600x2450 mm with glass Ug=0,6 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*3 for terrace system 3600x2260 mm with glass Ug=0,5 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method

PINE 68 Uw=1,06 *1 /  PINE 78 Uw=0,89 *2  /  PINE 88 Uw=0,83 *3
MERANTI 68 Uw=1,02 *1 /   MERANTI 78 Uw=0,85 *2   /  MERANTI 88 Uw=0,79 *3

*1 for terrace system 3600x2450 mm with glass Ug=0,8 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*2 for terrace system 3600x2450 mm with glass Ug=0,6 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method
*3 for terrace system 3600x2260 mm with glass Ug=0,5 W/(m2K) + plastic spacer SwissSpacer Ultimate - calculation method

Glass packages

36-52 mm

36-52 mm

9-61 mm

DL68: 24-44mm
DL78: 24-50mm
DL88: 24-58mm

SL68: 24-32mm
SL78: 24-44mm
SL88: 24-54mm
